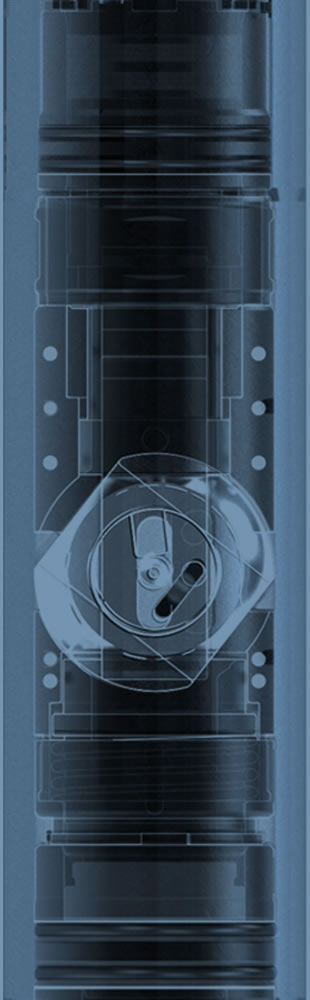

Wireless Ball Valve

Specifications

  • Max. OD: 5.5”[139.7mm]
  • Tool ID: 2.25”[57mmID]
  • ID Flow Area: 3.976sq.in[2565mm2]
  • Ball Flow Area: 3.976sq.in[2565mm2]
  • Ball Differential static: 10,000psi[69MPa]
  • Max. Annular Pressure: 17,500psi[120MPa]
  • Max. Tubing Pressure: 17,500psi[120MPa]
  • Ball Opening Differential: 5,000psi[35MPa]
  • Material Standard: NACE MR 0175/ISO 15156
  • Max. functions: 45 cycles
  • Min. Hydrostatic: 1,200psi[8.3MPa]
  • Temperature rating: 350°F[175°C]
  • Length: 24.6ft[7.5m]
  • Weight: 1125lbs[510kg]
  • Tensile Strength: 315,000lbf[1401kN]
  • Connection: 3 ½” 15.8# PH





Applications

  • Multi-zone testing
  • Extended build-up
  • Lateral isolation valve
  • Alternate flow path
  • Well test valve
  • Formation Saver Valve

Features

  • Multiple tools can be run at the same time, for fully selectable zonal testing
  • Integrated with proven Metrol Paragon Telemetry system
  • Dual redundant control system
  • Metal to metal primary seals
  • Built-in control system diagnostic pressure monitoring

Benefits

  • Surface wireless control
  • No control lines
  • No packer feedthroughs
  • No nitrogen
  • Ball position sensor in-built. Activation and ball position confirmation provided at surface
  • H2S, CO2 and acid compatible > Ball position sensor in-built
