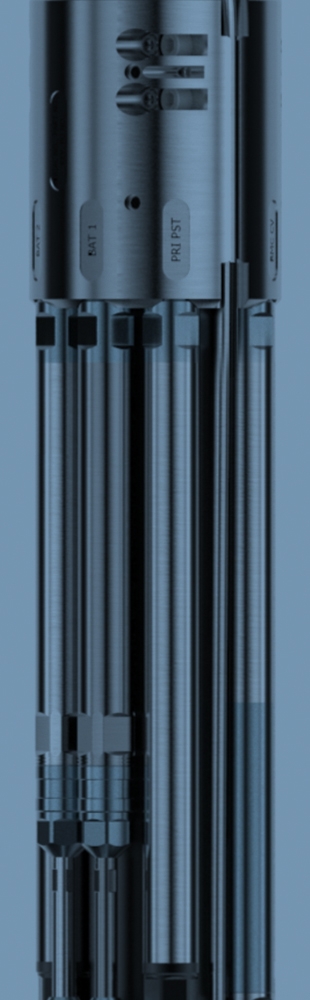

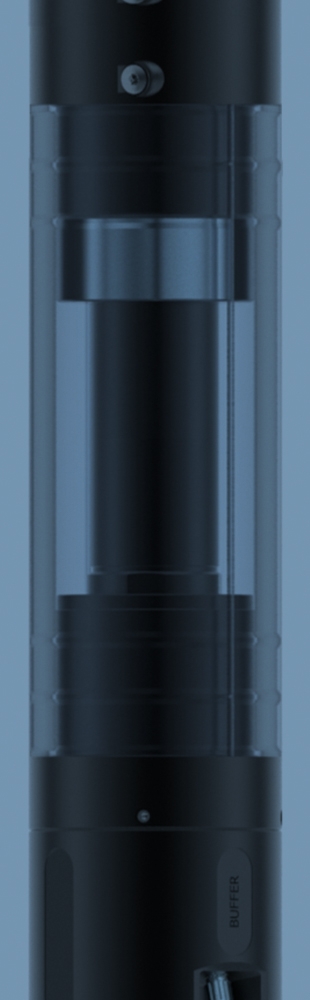

Multi Cycle Wireless Sliding Sleeve

FLOW-SURE MC is a wirelessly controlled, hydrostatic pressure operated, in-flow control or circulating valve.

Specifications

5.5’’ [139.7mm]

MAX OD

2.25’’ [57mm]

TOOL ID

3.976sq.in[2565mm2]

ID FLOW AREA

5.031sq.in[3246mm2]

PORT FLOW AREA

12,000psi[82MPa]

DIFFERENTIAL PRESSURE

15,000psi[103MPa]

MAX ANNULAR PRESSURE

Applications

  • Multi-zone testing
  • Extended build-up
  • Circulation valve
  • Alternate flow path
  • Back-up to well test valve

Features

  • Multiple tools can be run at the same time, for fully selectable zonal testing
  • Integrated with proven Metrol Paragon Telemetry system
  • Dual redundant control system
  • Non-elastomeric primary seals
  • Built-in control system diagnostic pressure monitoring

Benefits

  • Wireless control
  • No control lines
  • No packer feed-throughs
  • No nitrogen
  • Activation and sleeve position confirmation provided at surface
  • H2S, CO2 and acid compatible
